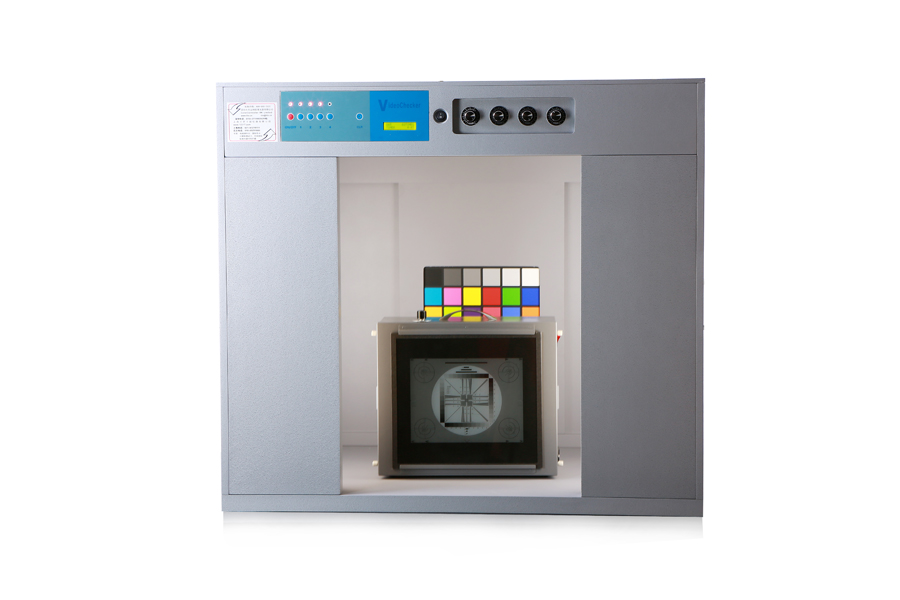

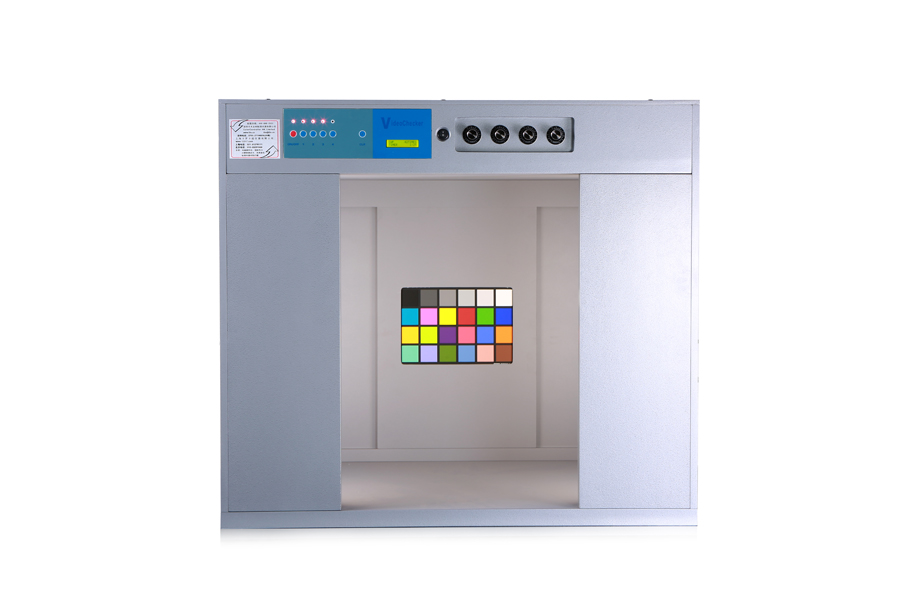

TILO VC(3) Professional Cheap Camera Viewer Color Check Box

Camera Color Check Box provides a special lighting source for the test of your Video Camera. Its main functions are as below:

  • Item：VC(3)
  • Brand：TILO
  • Measuring unit ：set
  • Price： ￥1700

TILO VC(3) Professional Cheap Camera Viewer Color Check Box

Camera Color Check Box provides a special lighting source for the test of your Video Camera. Its main functions are as below:

camera color check box

Camera Color Check Box Specifications:

1. Including D65, A, TL84, CWF light sources

2. Quick Switch among each group of light sources by using microcomputer control

3. Timing function to record the using time of each group of light sources separately.

4. All parts are professional import, international quality certification.

Camera Color Check Box Performance:

1. Daylight accredited by CIE, 6500k color temperature

2. Illumination range: 750 to 3200 lux

3. Background of the light sources is Neutral Grey.

4. Illumination adjustable from 1% to 100%, higher than 80% evenness, test distance can be adjustable.

Light Source:

Light SourceApplicationColor temperature(k)Power(W)
D65International standard Artificial Daylight650018
TL84Applied to stores in Europe, Japan and China400018
AShooting Light of American Window, Colorimetric reference light source285675
CWF(Cool White Fluorescent)American Standard415018
Color check box  Color check box 1  Color check box 2
Color check box 3
